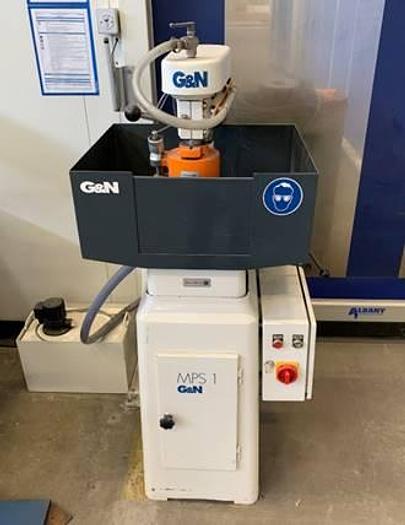

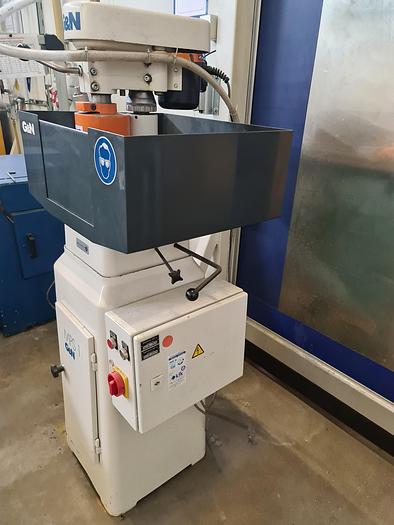

Precision surface grinding machine G&N MSP 1

Type: Precision Surface Grinding Machine Manufacturer: G & N Type: MSP 1 Year of construction: 2009 Drive motor: 0.55 kW Spindle speed: 3250 min-1 Electrical connection: 0.7 kW Control: conventional Flatness table: <2 µm Permanent magnetic clamping plate: 200 x 100 mm Grinding length: approx. 210 mm Grinding width: approx. 120 mm Grinding height: approx. 150 mm Flatness magnet: <2 μm Cup wheel / grinding wheel: ø 140x60x20 mm Fine infeed area: approx. 10 mm Smallest step: 1 μm Height adjustment coarse / hydr. Travel path: 140 mm Height adjustment fine: 10 mm Grinding spindle speed: 3150 rpm Spindle projection: 70 mm Guide pillar Grinding accuracy plane parallelism: 0.002 mm dimension Machine + coolant tank: approx. 890 x 790 mm Weight: approx. 155 kg
